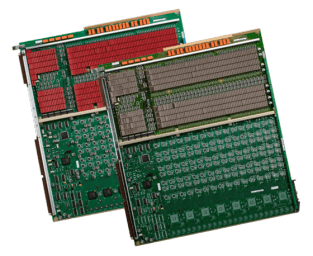

UltraPin II 通道卡
TestStation Models Now Support up to 15,360 Test Points!
Key Features:
- Multiplexed & non-multiplexed pin board options to match any pin count, technology and budget
- Ultra low voltage test capability with drive and sense accuracy of 15mv
- Award winning SafeTest protection technologies
- 8-wire analog instrument bus
- High quality relay switching matrix with a switching life of more than 500 million cycles, voltage rating of +/-250V, current rating of 1.5A and On resistance of 0.05 ohms
- Available for all TestStation models
- High density pin board options available for high pin count board test applications up to 15,360 test points
