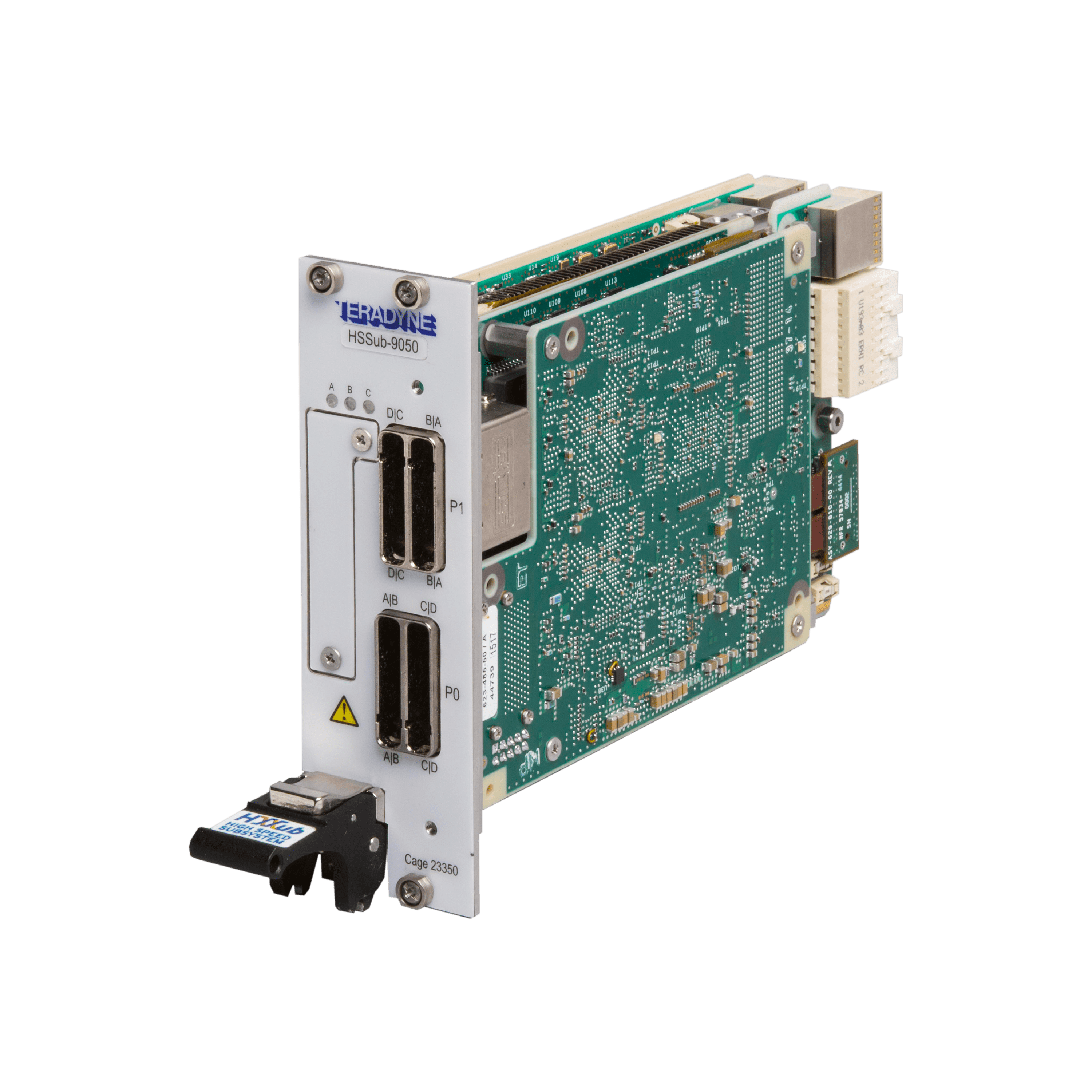

HSSub-9050
IRIG-B, Ethernet IO Expansion Instrument
Traditional Physical I/O Backed with FPGA Configurability
Best choice when current or future requirements include:
- Large quantity of concurrently operating RS-232 UARTs
- IRIG-B client & server emulation
- Concurrent ports of 10M/100M/1G Copper and 1G Optical Ethernet
- Flexible low-level HSSub Tier 1 I/O Bus Processing
- Reconfigurable HSSub Tier 1 (I/O Bus Processing) of the HSSub Three Tier Architecture implemented by a large Test Defined FPGA and local memory
- Configured in seconds by HSSub Apps supported by Teradyne, end-users, and third-party developers
- HSSub App development, if required, is simplified by FPGA template code based on standard design patterns
- HSSub TriFlex Infrastructure Software interfaces provide access to the hardware from Windows Tier 3 or HSSub Tier 2 instruments
- Ethernet capabilities
- One instrument can support concurrent copper cable I/O and Optical I/O (in conjunction with the HSSub-6065 Optical IO Expansion Instrument)
- HSSub TriFlex Infrastructure Software provides:
- Low-level port management functions inaccessible to public Windows APIs
- Fully integrated DHCP, FTP, TFTP servers and NFS server & client
- Access to the hardware from Windows (Tier 3) or HSSub Tier 2 instrument
- Contact Teradyne regarding availability of Flexible IO Expansion Instruments with alternate Physical Interface Module configurations
