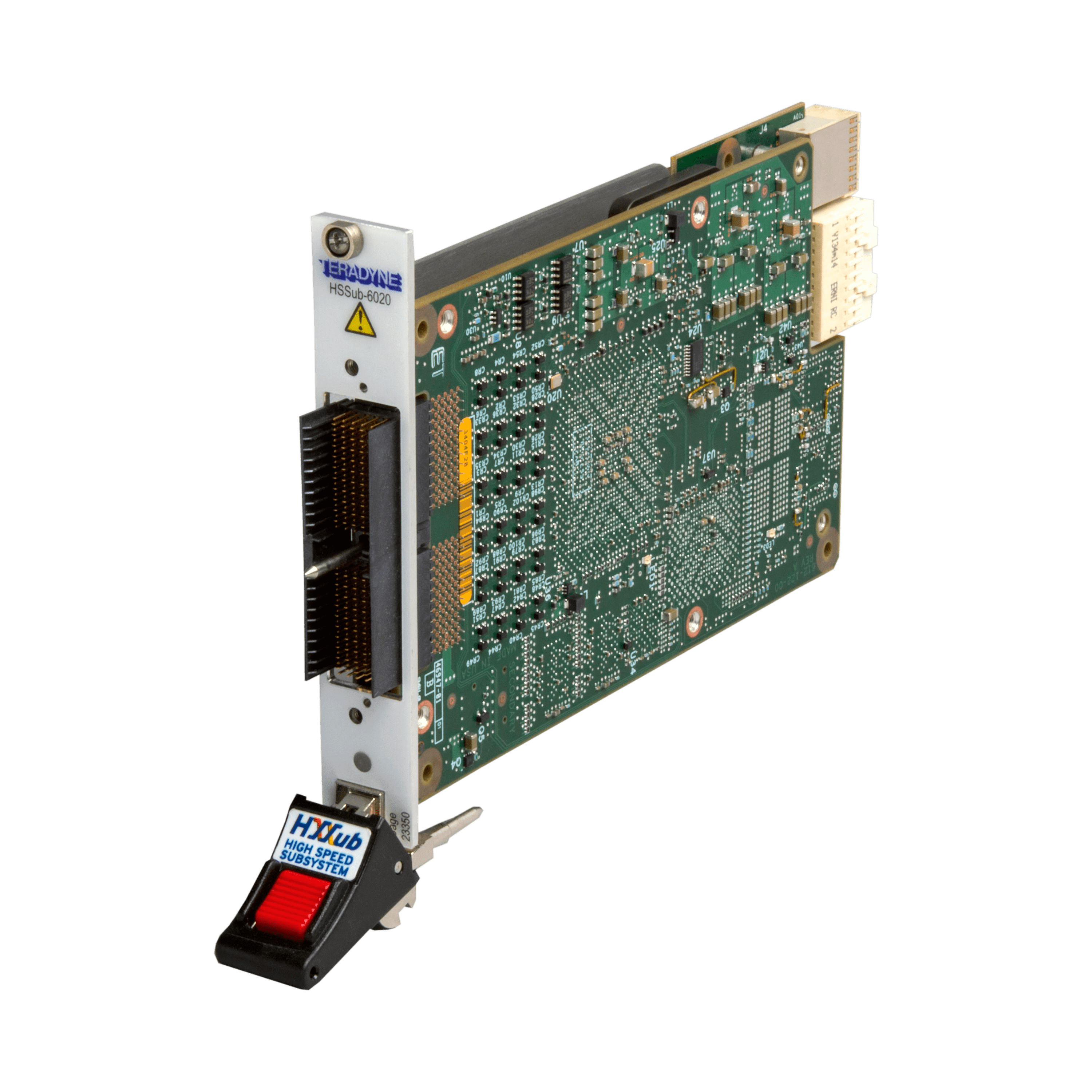

HSSub-6020
LVTTL IO Expansion Instrument
High Pin Count LVTTL/LVDS I/O with FPGA Configurability
Best choice when current or future requirements include:
- High pin count LVTTL and LVDS capability
- High throughput IEEE 1149.1 test and memory programming
- Conventional stored pattern capability
- FPGA configurability to address a variety of low-level bus specifications
- Broad IEEE 1149.1 Boundary Scan support
- Supported by the runtime software from the major third-party vendors
- Conventional interconnect tests through large-capacity Flash programming
- Multiple Test Access Ports and large pin count parallel I/O
- Serial Vector Format (SVF) runtime capability (HSSub App included in TriFlex software)
- Teradyne eDigital HSSub App provides conventional stored pattern (truth table) testing (included in HSSub TriFlex software)
- Flexible low-level HSSub Tier 1 I/O Bus Processing
- Reconfigurable HSSub Tier 1 (I/O Bus Processing) of the HSSub Three Tier Architecture implemented by a large Test Defined FPGA and local memory
- Configured in seconds by HSSub Apps supported by Teradyne, end-users, and third-party developers
- HSSub App development, if required, is simplified by FPGA template code based on standard design patterns
- HSSub TriFlex Infrastructure Software interfaces provide access to the hardware from Windows Tier 3 or HSSub Tier 2 instruments
